GV-GDRF4800

ModelGV-GDRF4800-2FGV-GDRF4800-3F
IrisFixedFixed
Focal Length (mm)2.8mm3.6mm
Horizontal FOV94°78°
Maximum ApertureF/1.6F/1.6
Image Format1/3″1/3″
Rated 0 out of 5
GV-GDRF4800

Description

AI 4MP H.265 Super Low Lux WDR Pro Full Color White LED IR Mini Fixed Rugged IP Dome

AI Deep-Learning IP Camera

GV‐GDRF4800 is a 4 MP outdoor mini fixed rugged IP dome camera, equipped with smart white LEDs for full color surveillance during nighttime. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidth. GV‐GDRF4800 adheres to IP67 and IK10 standards and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.

    Key features

    • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
    • 1/3″ progressive scan CMOS sensor
    • Triple streams from H.265, H.264 and MJPEG
    • Min. illumination at 0.005 lux
    • Up to 30 fps at 2560 x 1440
    • Intelligent IR
    • Smart White LED distance up to 30 m (100 ft)
    • Wide Dynamic Range Pro (WDR Pro)
    • IR distance up to 30 m (100 ft)
    • Ingress protection (IP67)
    • Vandal resistance (IK10 for metal casing)
    • 3-axis mechanism (pan / tilt / rotate)
    • DC 12V / PoE (IEEE 802.3af)
    • Built-in microSD card slot (SD / SDHC / SDXC) for local storage
    • Built-in microphone
    • 3D noise reduction
    • AI analytics (Line Crossing, Region Intrusion)
    • Smart lighting switch between IR LED (for motion detection) and White LED (for people, vehicle and motorcycle detection)
    • Motion detection
    • Text overlay
    • Privacy mask
    • ONVIF (Profile G, S, T, M) conformant
    • 21 languages supported

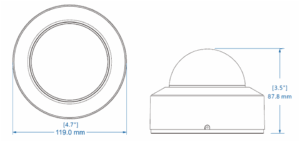

      Overview

      GV‐GDRF4800

        Accessories

        Model NoNameDetails
        GV-Mount211-4Wall Mount BracketDimensions: 129.5 x 155 x 74.5 mm (5.10″ x 6.10″ x 2.93″)
        Weight: 0.527 kg (1.16 lb)
        GV-Mount211-8Wall Mount BracketDimensions: 188.4 x 121 x 137.3 mm (7.41″ x 4.76″ x 5.4″)
        Weight: 0.52 kg (1.15 lb)
        *must be used with Mount515
        GV-Mount314Corner Mount BracketDimensions: 215 x 121.4 x 215 mm (8.46 x 4.78 x 8.46 in)
        Weight: 2.05 kg (4.52 lb)
        *must be used with Mount211-8
        GV-Mount470Pole Mount BracketDimensions: 163.3 x 54.5 x 215 mm (6.43″ x 2.15″ x 8.46″)
        Weight: 1.10 kg (2.43 lb)
        *must be used with Mount211-8
        GV-Mount515Junction BoxDimensions: 117.9 x 143.3 x 39 mm (4.64 x 5.64 x 1.54 in)
        Weight: 0.24 kg (0.53 lb)
        GV-PA191PoE AdapterGV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
        GV-PA301Gigabit PoE AdapterGV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
        GV-POE SwitchGV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
        Power AdapterContact our sales representatives for the countries and areas supported.

          Packing List

          • GV-GDRF4800 Mini Dome
          • Waterproof Rubber Set
          • Screw Kit
          • Drill Template Paster
          • Download Guide
