UA-XVL1611

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • Realtime AI Face Recognition (search, tracking, attendance and repeated recognition request)
  • H.265 / H.264 video format
  • 16-ch TVI / AHD / CVI / CVBS video input
Rated 0 out of 5

Description

16CH H.265 5MP Lite / 2MP HD DVR

UA-XVL1611 is a powerful H.264 / H.265 HD DVR with compact size and supports 16-channel analog camera and 4-channel IP camera inputs, totaling a connection of up to 20 channels. It converts analog signals into high-resolution digitized images up to 5 megapixels. Featuring 4-in-1 video output, UA-XVL1611 supports TVI/AHD/CVI/CVBS connection.

With its Web Client on the web browser, users can access several functions, including Live View, Change Stream, Manual Alarm, Divide Screen, and more. It is also able to trigger Tampering Alarm alerts when cameras are tampered with, which can prevent criminal activities.

UA-XVL1611 integrates the capacity of AI-capable UA-IP cameras and HD analog cameras and provides various video analysis functions for perimeter protection. With the Face Recognition functions, users can access the database for face search, face tracking on E-Map, repeat visitor request, and face attendance request to enhance the convenience and security of the surveillance environment.

    Key features

    • 4-ch IP camera input
    • 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840 x 2160) resolution
    • HDMI and VGA simultaneous output
    • 1 SATA interface, up to 10 TB
    • 4 alarms inputs and 1 alarm output
    • P2P function for GV-Eye app
    • ONVIF cameras support

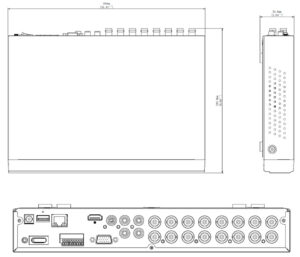

      Overview

      UA-XVL1611

        Packing List

        • UA-XVL1611
        • 3.5″ HDD Screw Kit
        • 2.5″ HDD Screw Kit
        • USB Mouse
        • Power adapter (DC 12V, 2A)
        • Download Guide
