GV-TMS8800

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/3″ progressive scan super low lux CMOS sensor
  • Min. illumination at 0.002 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 25 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 180° panoramic view
  • Vandal resistance (IK10 for metal casing)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Built-in microphone
  • Two-way audio capable
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • AI analytics (Intrusion, Line Crossing, Region Entrance, Region Exiting, Face Detection, People Counting, Crowd Density Monitoring)
  • 3D noise reduction
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • All specifications are subject to change without notice.
دسته: ,

توضیحات

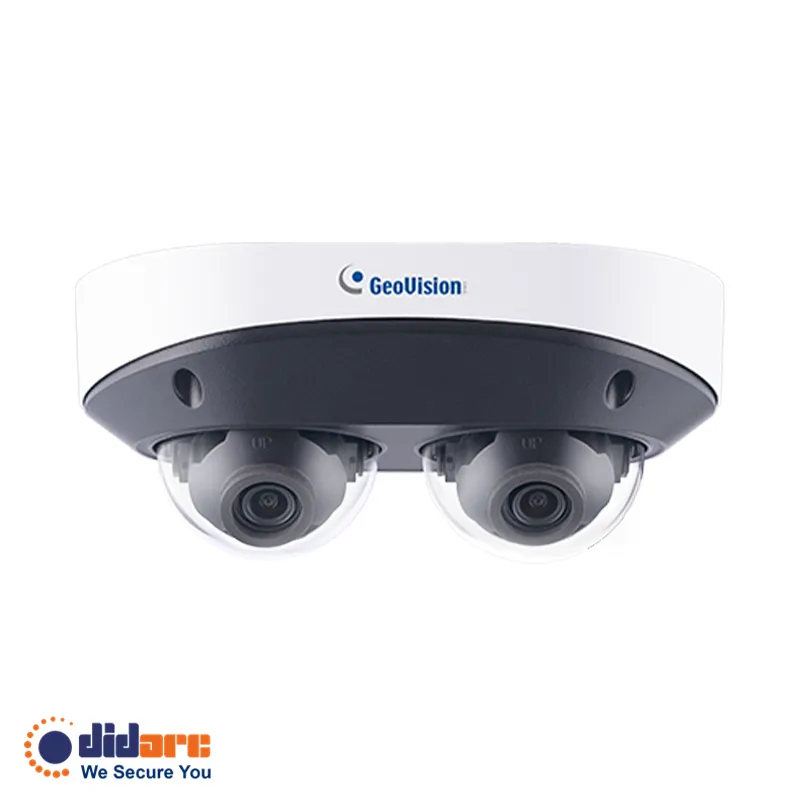

AI Deep-Leaning IP Camera

GV-TMS8800 features two 4MP CMOS image sensors to deliver a video resolution of 2688 x 1520 at up to 25 fps. It’s an outdoor, fixed, network camera equipped with an automatic IR-cut filter and two IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, playback and more.

Models

Model GV-TMS8800
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 97.7°
Maximum Aperture F/1.6
Image Format 1/3″

Overview

Note:

  • All specifications are subject to change without notice.

Packing List

  • GV-TMS8800 Dual-sensor IR Dome
  • Screw Kit
  • Drill Template Paster
  • Waterproof Rubber Set
  • Torx Wrench
  • Download Guide

Note:

  • All specifications are subject to change without notice.

Download

DatePreviewSizeTitleType
2023-09-12454KBDatasheet GV-GEBF4911
2024-05-06992KBComparison Table
2024-12-193MBSpecification Table
2024-02-02691KBDatasheet GV-GEBF4911 (French)
2024-08-052.1MBGV-G Series IP Camera Mount Installation Guide
2024-07-3155.6KBVersion History GV-GEBF4911
2024-12-195.7MBGV-Cloud IP Camera User’s Manual
2024-12-191.9MBGV-Cloud IP Camera Quick Start Guide
