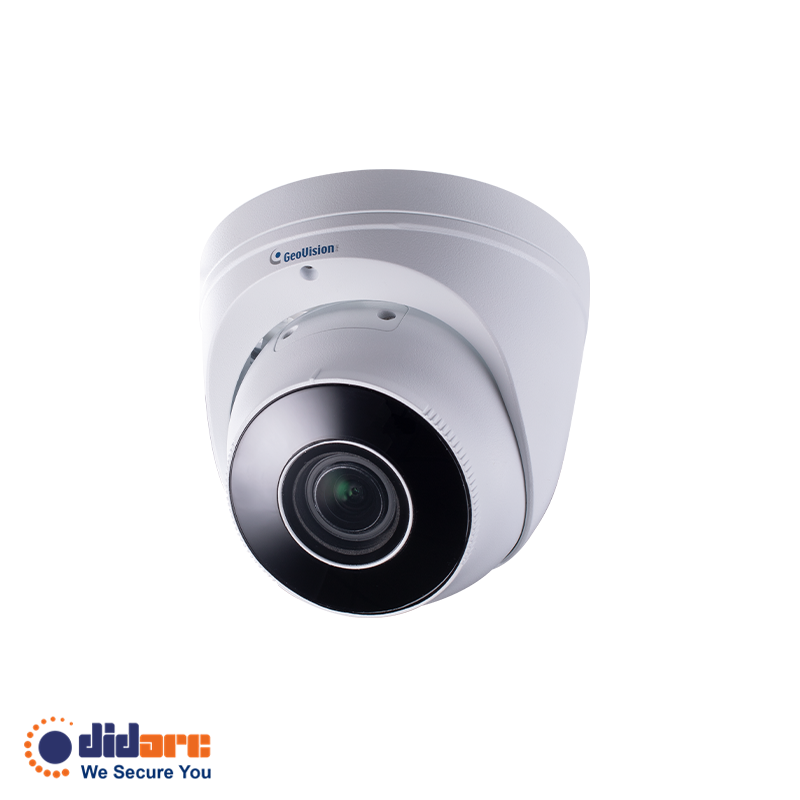

Eyeball
GV-EBD4712
Model: GV-EBD4712
1/3″ progressive scan super low lux CMOS sensor Min. illumination at 0.003 lux Triple streams from H.265, H.264 or MJPEG Up to 30 fps at 2688 x 1520 Motorized varifocal lens for remote focus / zoom adjustment Intelligent IR IR…
2.8~12mmF/1.61/3”98°~31°
Price
Project-based quote
GV-EDB4712 is an outdoor, network camera equipped with an automatic IR-cut filter and 2 IR LEDs for day and night surveillance. With its motorized lens, the user can zoom and focus the camera from the Web interface. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.
Models
| Model | GV-EBD4712 |
| Iris | Fixed |
| Focal Length (mm) | 2.8~12mm |
| Horizontal FOV | 98°~31° |
| Maximum Aperture | F/1.6 |
| Image Format | 1/3” |
- ▣GV-EBD4712 Eyeball Dome
- ▣Waterproof Rubber Set
- ▣Screw kit
- ▣Drill Template Paster
- ▣Download Guide
- ▣Warranty Card
| Model | GV-EBD4712 |
|---|---|
| Iris | Fixed |
| Focal Length (mm) | 2.8~12mm |
| Horizontal FOV | 98°~31° |
| Maximum Aperture | F/1.6 |
| Image Format | 1/3” |
Download Center
Files & documents for this product
Specifications
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ▣ Comparison Table | — | — | 887KB | ⤓ Download |
| ▣ Specification Table | — | — | 7.2MB | ⤓ Download |
Datasheet
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ▤ Datasheet IPCamEBD4712 | — | — | 494.3KB | ⤓ Download |
| ▤ GV-A/T/EBD Series IP Camera Mount Installation Guide | — | — | 2MB | ⤓ Download |
| ▤ IPCam TDR TVD4711 | — | — | 51.8KB | ⤓ Download |
| ▤ IR reflection in Dusty Environment | — | — | 4.0MB | ⤓ Download |
Quick Guide
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ◧ GV IP Camera Quick Guide DE | — | — | 4.0MB | ⤓ Download |
| ◧ GV-TVD2712 Quick Start Guide | — | — | 2.4MB | ⤓ Download |
User Manual
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ▦ GV-TVD2712 User’s Manual | — | — | 7.7MB | ⤓ Download |
Related products

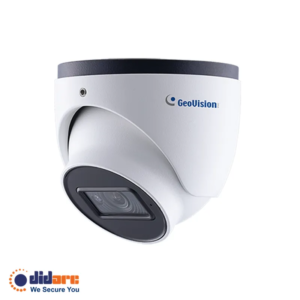

EyeballGV-GEB4900
2.8mmF/1.61/3″
Direct-to-Cloud AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle) 1/3″…
Request a quoteDetails →
EyeballGV-EBD8711
2.8~12mmF/1.51/2″
1/2″ progressive scan super low lux CMOS sensor Min. illumination at 0.003…
Request a quoteDetails →

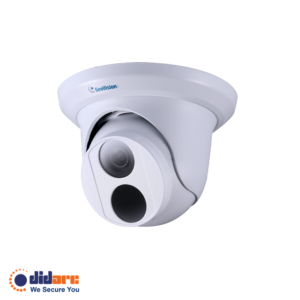

EyeballGV-EBD8700
8MPWDRIP67
Request a quoteDetails →

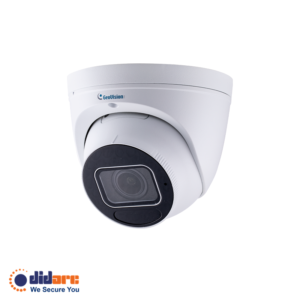

EyeballGV-EBD8813
