Genuine · official warranty Hot Swap System

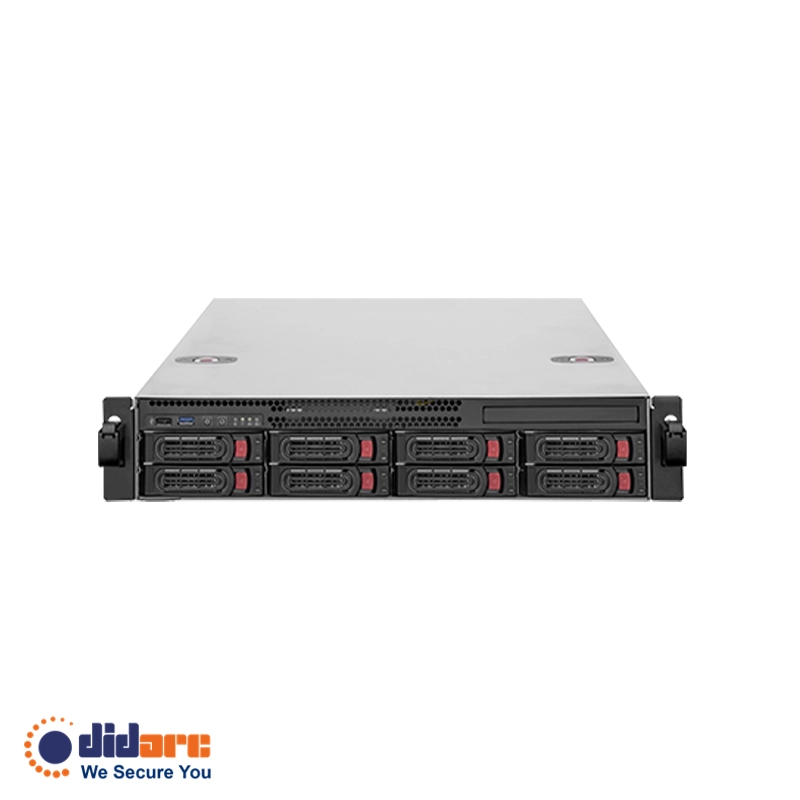

GV-Hot Swap System V6 RevC-2U,8-Bay

Model: GV-HOT

Powered by Intel Core i7 Processor 64-bit Windows 11 IoT Enterprise RAM 8 GB (for GV-NVR) / 16 GB (for GV-VMS) H.265 CPU and GPU decoding

Maximum storage capacity of up to 440 TB (4U 20-Bay) / 264 TB (2U 12-Bay) / 176 TB (2U 8-Bay)Hot-swap SATA HDDs for data storageHot-swap status LED panelDual Gigabit LAN ports: 2.5 Gigabit x 2Multiple monitor display for up to 2 monitorsCompatible with full selections of GeoVision accessories

Price

Project-based quote

◈ Integrated solution

Request a Quote ⤓ Downloads

GV-Hot Swap System V6 (Rev. C) features a powerful data storage capacity. It comes with hot-swappable SATA mobile racks in sizes of 4U (20-bay) and 2U (12 / 8-bay). Depending on HDD capacity, GV-Hot Swap System V6 (Rev. C) can store up to 440 terabytes of recorded data.

GeoVision surveillance software empowers GV-Hot Swap System V6 (Rev. C) with a maximum of 64 audio and video channels for GV-VMS, and 32 audio and video channels for GV-NVR. When installed with GV-Recording Server, GV-Hot Swap System V6 (Rev. C) can record up to 256 channels and distribute up to 600 channels to a variety of GeoVision software.

Software Supported: GV-NVR / GV-VMS

✓Maximum storage capacity of up to 440 TB (4U 20-Bay) / 264 TB (2U 12-Bay) / 176 TB (2U 8-Bay)
✓Hot-swap SATA HDDs for data storage
✓Hot-swap status LED panel
✓Dual Gigabit LAN ports: 2.5 Gigabit x 2
✓Multiple monitor display for up to 2 monitors
✓Compatible with full selections of GeoVision accessories
✓64-channel GV-VMS / 32-channel GV-NVR (pure IP surveillance)
✓Extreme performance for preinstalled GV-VMS / NVR / Recording Server software
✓RAID type: 0, 1, 5, 6, 10, 50, 60 (optional)
✓Redundant power supply (optional)
✓Sliding rail kit for rackmount chassis (optional)
✓GV-AI Accelerator Module to enhance PVD detection channels and reduce CPU demand (optional)
✓CE, FCC, LVD compliant (by request)

▣GV-Hot Swap System V6 (Rev. C)
▣AC Power Cord
▣Documents Download Guide
▣All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.

Model No	Name
GV-Data Capture V3 Box (for GV-VMS/NVR)	GV‐Data Capture allows the integration of POS systems and the GeoVision surveillance system through cable or network connection.
GV-IO Box Series (for GV-VMS/NVR)	GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
Gigabit Network Card	Gigabit Network Card is provided with the two options of 1-port Gb card and 2-port 10-Gb (20 Gb) card. The supported number of network cards varies based on models and the combination of RAID card. Contact our sales representatives for more information.
RAID Card	The supported RAID types include 0, 1, 5, 6, 10, 50, 60.
Redundant Power Supply	Redundant Power Supply comes with 2 hot-swap modules for 2U models and for 4U models. When 1 module is down, the other module can still supply full power to the system. – 2U 8-Bay models: 460 W 1+1 mode; 100 ~ 240 V, 47 ~ 63 Hz – 2U 12-Bay models: 550 W 1+1 mode; 100 ~ 240 V, 47 ~ 63 Hz – 4U 20-Bay models: 800 W 1+1 mode; 90 ~ 264 V, 47 ~ 63 Hz
Sliding Rail Kit	With its tool-less design, the sliding rail kit is perfect for GV-Hot Swap System V6. It supports up to 430 mm wide chassis and can take up loading of up to 45 kg (100 lb).
GV-AI Accelerator Module	GV-AI Accelerator Module increases the number of PVD motion detection channels in GV-VMS or GV-AI Guard.
1 TB SSD (M.2)	1 TB SSD (M.2) provides 1 TB of industrial-grade storage optimized for GV-VMS databases and AI event databases. *GV-AI Accelerator Module and 1 TB SSD (M.2) are mutually exclusive. Only one may be selected.

Download Center

Files & documents for this product

Datasheet

Title	Version	Lang	Size
▤ Datasheet GV-Hot Swap System V6 (Rev. C)-2U, 8-Bay	—	—	454KB	⤓ Download
▤ HDD Compatibility Chart	—	—	313KB	⤓ Download
▤ Optional Accessories	—	—	262KB	⤓ Download
