GV-TBL4807

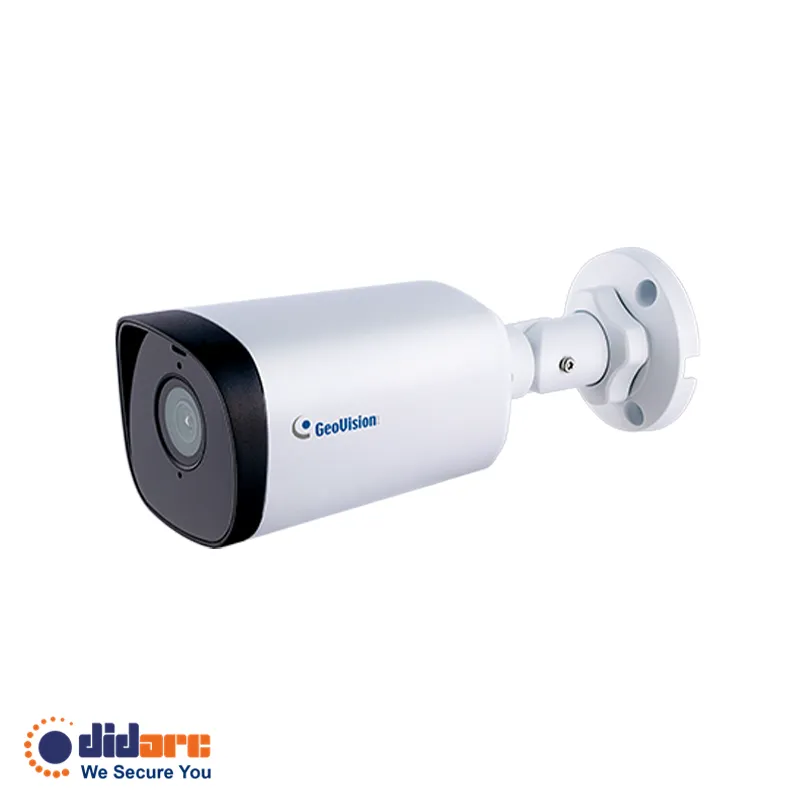

The GV-TBL4807 is a 4MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera designed for outdoor surveillance. It features an automatic IR-cut filter and IR LEDs to provide clear day and night monitoring. Supporting the H.265 video codec, the camera delivers high-quality images with better compression, reducing network bandwidth usage. The camera meets IP67 standards for ingress protection and can be powered via PoE.
Powered by deep learning algorithms, the camera’s AI technology can differentiate humans and vehicles from other moving objects. When integrated with GeoVision Video Management Software (VMS), it offers AI perimeter protection, real-time alerts, event playback, and more.
Models
| Model | GV-TBL4807 |
| Iris | Fixed |
| Focal Length (mm) | 6mm |
| Horizontal FOV | 52.1° |
| Maximum Aperture | F/1.6 |
| Image Format | 1/2.7″ |
- ▣GV-TBL4807 IR Bullet Camera
- ▣Waterproof Rubber Set
- ▣Screw Kit
- ▣Drill Template Paster
- ▣Torx Wrench
- ▣Download Guide
| Model | GV-TBL4807 |
|---|---|
| Iris | Fixed |
| Focal Length (mm) | 6mm |
| Horizontal FOV | 52.1° |
| Maximum Aperture | F/1.6 |
| Image Format | 1/2.7″ |
Files & documents for this product
Specifications
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ▣ Comparison Table | — | — | 887KB | ⤓ Download |
| ▣ Specification Table | — | — | 7.2MB | ⤓ Download |
Datasheet
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ▤ Datasheet IPCamTBL4807 | — | — | 329KB | ⤓ Download |
| ▤ Datasheet IPCamTBL4807 PT | — | — | 2.3MB | ⤓ Download |
| ▤ IPCam TDR4704 | — | — | 223KB | ⤓ Download |
Quick Guide
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ◧ GV‑TMS20811 Quick Start Guide | — | — | 8.38MB | ⤓ Download |
User Manual
| Title | Version | Lang | Size | |
|---|---|---|---|---|
| ▦ GV‑TMS20811 User’s Manual | — | — | 9.85MB | ⤓ Download |
