Genuine · official warranty Dome

GV-TFD4700

Model: GV-TFD4700

1/3″ progressive scan super low lux CMOS sensor Min. illumination at 0.01 lux Triple streams from H.265, H.264 or MJPEG Up to 30 fps at 2688 x 1520 Intelligent IR IR distance up to 30 m (100 ft) Day and…

2.8mmF/2.01/3″95°

Price

Project-based quote

◈ Integrated solution

Request a Quote ⤓ Downloads

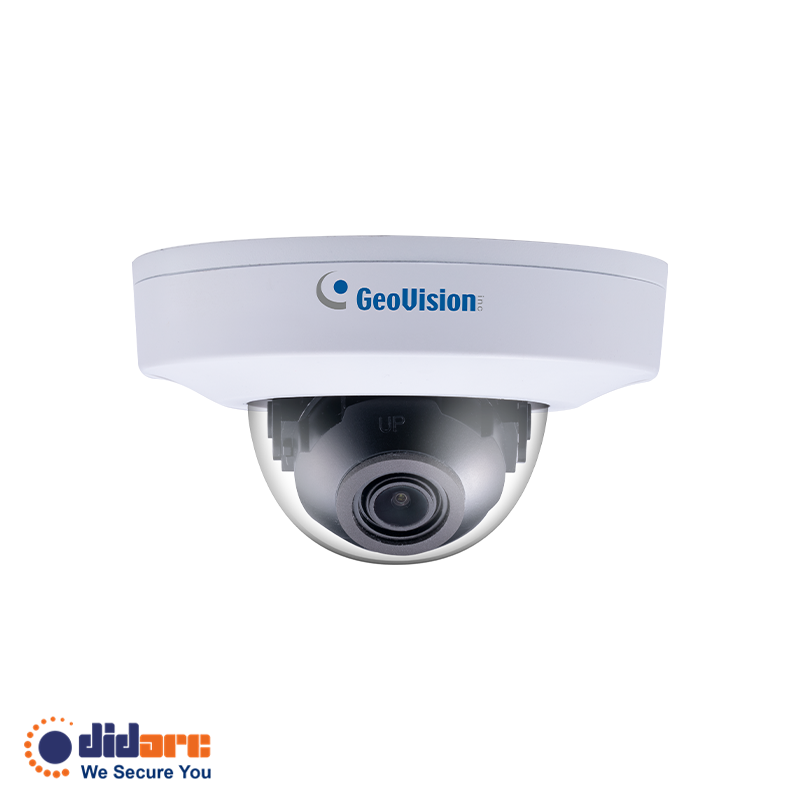

GV-TFD4700 – Indoor Fixed Network Camera

The GV-TFD4700 is an indoor, fixed network camera equipped with an automatic IR-cut filter and IR LED for reliable day and night surveillance. Supporting the H.265 video codec, it ensures better compression while maintaining high-quality images and reducing network bandwidth usage. With its super low lux CMOS image sensor, the camera delivers clear color live views even in near darkness, making it ideal for 24/7 monitoring in low-light environments.

Models

Model	GV-TFD4700
Iris	Fixed
Focal Length (mm)	2.8mm
Horizontal FOV	95°
Maximum Aperture	F/2.0
Image Format	1/3″

▣GV-TFD4700
▣Screw Kit
▣Drill Template Paster
▣Torx Wrench
▣2-Pin Terminal Block
▣Download Guide
▣Warranty Card

Model	GV-TFD4700
Iris	Fixed
Focal Length (mm)	2.8mm
Horizontal FOV	95°
Maximum Aperture	F/2.0
Image Format	1/3″

Download Center

Files & documents for this product

Specifications

Title	Version	Lang	Size
▣ Comparison Table	—	—	887KB	⤓ Download
▣ Specification Table	—	—	7.2MB	⤓ Download

Datasheet

Title	Version	Lang	Size
▤ Datasheet IPCamTFD4700	—	—	182.9KB	⤓ Download
▤ GV-A/T/EBD Series IP Camera Mount Installation Guide	—	—	2MB	⤓ Download
▤ IPCam TDR TVD4711	—	—	51.8KB	⤓ Download
