اصل و گارانتی رسمی
Reader
کارتخوان GV-FR Panel
مدل: GV-FR PANEL

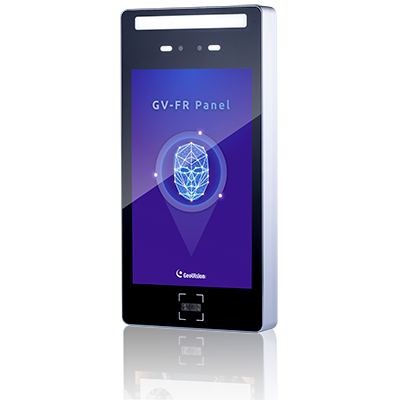

GV-FR Panel — Face Recognition Panel with Built-in NFC / QR Code Reader and IPS Touch Screen
8" IPS touch screen with 800 x 1280 HD displayFace recognition distance of up to 1 m (3.28 ft)Built-in RGB & IR cameras10,000 face image capacity10,000 access card capacityBuilt-in 13.56 MHz, ISO 14443A reader
قیمت
استعلام قیمت پروژهای
GV-FR Panel یک کارتخوان از ژئوویژن (GeoVision) است — Face Recognition Panel with Built-in NFC / QR Code Reader and IPS Touch Screen.
دیدارک بهعنوان نمایندهٔ انحصاری ژئوویژن در ایران، این محصول را با گارانتی رسمی، مشاورهٔ فنی و پشتیبانی نصب عرضه میکند. مشخصات فنی، دیتاشیت و فایلهای دانلود در همین صفحه در دسترس است؛ برای استعلام قیمت با ما تماس بگیرید.
- ✓8" IPS touch screen with 800 x 1280 HD display
- ✓Face recognition distance of up to 1 m (3.28 ft)
- ✓Built-in RGB & IR cameras
- ✓10,000 face image capacity
- ✓10,000 access card capacity
- ✓Built-in 13.56 MHz, ISO 14443A reader
- ✓Built-in LED light for nighttime and low-light face recognition
- ✓Liveness detection (face spoofing detection)
- ✓Mask detection
- ✓Masked face recognition
- ✓Three access modes: Face Only mode, Card or Face mode, Card + Face mode
- ✓Scanning QR codes of visitor access issued by GV-AS Manager's visitor management system
- ✓Scanning QR codes of the EU Digital COVID Certificate
- ✓Integration with third-party Wiegand controllers
- ✓Mobile app supported for push notifications
- ✓16 languages supported
- ✓CE, FCC, LVD, RoHS compliant
- ▣GV-FR Panel
- ▣Wall Mount Bracket kit
- ▣Wiegand cable
- ▣RJ-45 cable
- ▣USB Host PH2.0-4P cable
- ▣USB OTG PH2.0-4P cable
- ▣Power cable
| GV-FR Panel-5 | GV-FR Panel-10 |
|---|---|
| Binocular Cameras | |
| RGB Camera | IR Camera RGB Camera IR Camera |
| Image Sensor | 1/2.7” CMOS |
| Minimum Illumination | 0.1 lux at F1.8 |
| White Balance | Automatic |
| S/N Ratio | ≥ 45 dB |
| Frame Rate | 30 FPS |
| Dynamic Range | ≥ 100 dB |
| Touchscreen Panel | |
| Display | 8” HD fully fitted IPS LCD |
| Resolution | 800 x 1280 |
| Capacity | |
| Recognition Angle | |
| Card Supported | |
| Face Image | 10,000 |
| Capacity | Card 10,000 |
| Event Log | 50,000 100,000 |
| Operation Mode | Face Only mode, Card or Face mode, Card + Face mode |
| Firmware Upgrade | via GV-IP Device Utility |
| Face Recognition | |
| Angle | Swing (Left / Right) -25° ~ 20° |
| Mechanical | |
| Audio | Built-in speaker and microphone |
| GV-FR Panel | December 5, 2025 |
| Internal Storage | 16 GB eMMC |
| Power | DC Jack |
| Ethernet | 10 / 100 M, RJ-45 Connector |
| Connectors | |
| USB | 2.0 |
| General | |
| Language | |
| Operating Temperature | -10 ~ 60 °C (14 ~ 140 °F) |
| Humidity | 10% ~ 90% (non-condensing) |
| Power Max. Power Consumption 18 W | DC 12 V, 3 A |
مرکز دانلود
فایلها و مستندات این محصول
مشخصات فنی
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ▣ Comparison Table for FR Panels | — | — | 240KB | ⤓ دانلود |
| ▣ Controller–Reader Compatibility | — | — | 913KB | ⤓ دانلود |
دیتاشیت
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ▤ Datasheet GV-FR Panel | — | — | 391.3KB | ⤓ دانلود |
| ▤ How to Add User Faces with GV-ASManager | — | — | 853KB | ⤓ دانلود |
| ▤ How to Convert GV-FR Panel Engine | — | — | 212.5KB | ⤓ دانلود |
| ▤ Version History GV-FR Panel | — | — | 139KB | ⤓ دانلود |
فرمور (Firmware)
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ⚙ Firmware GV-FR Panel | — | — | 180MB | ⤓ دانلود |
نرمافزار
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ◈ GV-ASManager | — | — | 941MB | ⤓ دانلود |
| ◈ GV-Face Manager | — | — | 90.7MB | ⤓ دانلود |
| ◈ GV-IP Device Utility V9.0.7 | V9.0.7 | — | 118MB | ⤓ دانلود |
راهنمای سریع
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ◧ GV-FR Panel Quick Start Guide | — | — | 3.6MB | ⤓ دانلود |
دفترچه راهنما
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ▦ GV-FR Panel User’s Manual | — | — | 8.8MB | ⤓ دانلود |
