Controller
کنترلر کنترل تردد GV-IA1330
مدل: GV-IA1330

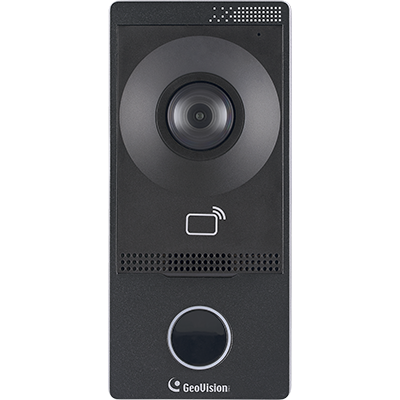

GV-IA1330 — H.265 2MP WDR IP Video Intercom
One door IP controller (entry and exit)Built-in 13.56 MHz, ISO 14443A reader4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor)2 outputs (Door Lock, Alarm)2 GeoVision's RS-485 or OSDP compliant readers supported1/2.9" progressive scan CMOS
قیمت
استعلام قیمت پروژهای
GV-IA1330 یک کنترلر کنترل تردد از ژئوویژن (GeoVision) است — H.265 2MP WDR IP Video Intercom.
ویژگیهای کلیدی: UL، Cloud.
دیدارک بهعنوان نمایندهٔ انحصاری ژئوویژن در ایران، این محصول را با گارانتی رسمی، مشاورهٔ فنی و پشتیبانی نصب عرضه میکند. مشخصات فنی، دیتاشیت و فایلهای دانلود در همین صفحه در دسترس است؛ برای استعلام قیمت با ما تماس بگیرید.
- ✓One door IP controller (entry and exit)
- ✓Built-in 13.56 MHz, ISO 14443A reader
- ✓4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor)
- ✓2 outputs (Door Lock, Alarm)
- ✓2 GeoVision's RS-485 or OSDP compliant readers supported
- ✓1/2.9" progressive scan CMOS
- ✓Minimum illumination at 0.02 lux
- ✓Dual streams from H.265, H.264, and MJPEG
- ✓Up to 30 fps at 1920 x 1080
- ✓Intelligent IR
- ✓Ingress protection (IP65)
- ✓DC 12V / PoE (IEEE 802.3af)
- ✓Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- ✓Day and night function (with removable IR-cut filter)
- ✓Built-in IR with effective distance up to 3 m (10 ft)
- ✓Built-in microphone and speaker
- ✓Wide Dynamic Range (WDR)
- ✓2D / 3D noise reduction
- ✓Text overlay
- ✓Privacy mask
- ▣GV-IA1330
- ▣Function Cable
- ▣Screw Kit
- ▣Screw Driver
- ▣microSD Card (32 GB)
- ▣Drill Template Paster
- ▣Wall Mount Bracket
- ▣Embedded Bracket
- ▣Download Guide
| Camera | |
|---|---|
| Image Sensor | 1/2.9" progressive scan CMOS |
| Picture Elements | 1920 (H) x 1080 (V) |
| Shutter Speed | Automatic, Manual (1/25 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| Lens | |
| Megapixel | 2 MP |
| Day / Night function | Yes (with removable IR-cut filter) |
| Lens Type | Fixed |
| Focal Length | 2.58 mm |
| Maximum Aperture | F/2.0 |
| Mount | M12 |
| Horizontal FOV | 124.3° -3- |
| GV-IA1330 | July 15, 2026 |
| Focus | Fixed |
| Operation | Zoom Fixed |
| Iris | Fixed |
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 3 m (10 ft) |
| Operation | |
| Video Compression | H.265, H.264 |
| Video Streaming | Dual streams from MJPEG, H.264 and H.265 |
| Stream 1 | 1920 x 1080 (16:9) |
| Video Resolution | |
| Stream 2 | 1280 x 720 (16:9) 30 fps at 1920 x 1080 25 fps at 1920 x 1080, 1280 x 720 |
| Frame Rate | |
| Image Setting | |
| Audio Compression | PCM, G711, MP3 |
| Audio Support | Two-way audio |
| Network | |
| Interface | 10/100 Ethernet 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, NTP, PPPoE, RTCP, RTP, |
| Protocol | |
| Mechanical | |
| Power | 2-pin terminal block, PoE |
| Ethernet | RJ-45 |
| Audio | Built-in microphone and speaker RS-485 interface |
| RS-485 | *For the RS-485 interface, connect only one of the following reader types to |
| Connector | GV-IA1330: either GeoVision RS-485 readers or OSDP-compliant readers. * Separate power source is required to power RS-485 readers. Built-in microphone Yes Built-in speaker Yes microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 10 ~ 90% (no condensation) |
| Power Source | 12 V DC ±25%, 1 A / PoE (IEEE 802.3af) |
| Maximum Power Consumption | 10 W |
| Dimensions | 79 x 171 x 34 mm (3.1 x 6.7 x 1.3”) |
| Weight | 0.267 kg (0.59 lb) |
| Ingress Protection | IP65 |
| Certification | CE, FCC, LVD, RoHS, UL compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility Camera Live View, Bandwidth Status, Image Snapshot, Two-way Audio, Text |
| Access from Web Browser | |
| Language | English |
| Applications | |
| Live Viewing | Web interface via browser (IE, Edge, Chrome, Firefox) -4- |
| GV-IA1330 | July 15, 2026 |
| Access Control Management | GV-Cloud Access Control |
| Mobile App | GV-Cloud mobile app |
| Controller | |
| Number of User Cards | 100,000 cards |
| Frequency | 13.56 MHz ISO14443A |
| Event Buffer | 65,535 events and log data |
| RS-485 Interface | 1 RS-485 interface for max. 2 RS-485 / OSDP readers |
| Communication Protocol | TCP/IP 4 inputs (Door Sensor, Door Button, Fire Sensor, Tamper Sensor) dry contact NO/NC |
| Digital I/O | |
| Supported ID Formats | Built-in UID reader |
مرکز دانلود
فایلها و مستندات این محصول
مشخصات فنی
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ▣ Comparison Table for GV-AS Controllers | — | — | 654KB | ⤓ دانلود |
| ▣ Controller–Reader Compatibility | — | — | 913KB | ⤓ دانلود |
دیتاشیت
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ▤ Datasheet GV-IA1330 | — | — | 701KB | ⤓ دانلود |
| ▤ GV-IA1330 / IS1320 Installation Guide | — | — | 973KB | ⤓ دانلود |
| ▤ Version History GV-IA1330 | — | — | 202KB | ⤓ دانلود |
فرمور (Firmware)
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ⚙ Firmware GV-IA1330 | — | — | 70.3MB | ⤓ دانلود |
دفترچه راهنما
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ▦ GV-IA1330 User’s Manual | — | — | 4.5MB | ⤓ دانلود |
نرمافزار
| عنوان | نسخه | زبان | حجم | |
|---|---|---|---|---|
| ◈ GV-IP Device Utility V9.0.7 | V9.0.7 | — | 118MB | ⤓ دانلود |
