GV-MNVR1000 Mobile System
مدل: GV-MNVR1000
Powered by Intel Atom Processor 64-bit Windows Embedded Standard 7 SP1 GPU Decoding 1 Hot Swappable HDD / SSD bay for up to 1 Terabyte Fanless System Vibration and Mechanical Shock Protection (2G at 5 ~ 500 Hz for SSD)…
قیمت
استعلام قیمت پروژه‌ای

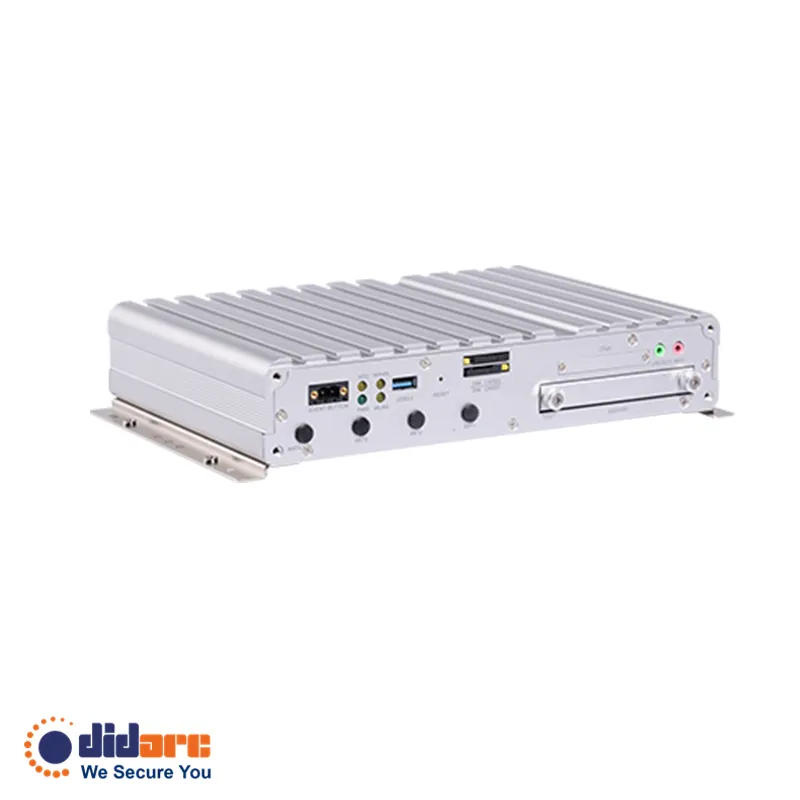

GV-MNVR1000 Mobile System
Designed to withstand harsh environments, the GV-Mobile NVR System operates across a wide temperature range and features anti-vibration protection, making it ideal for railways, public transit, and industrial environments.
For storage, it provides 1 hot-swappable bay for HDD or SSD options. With built-in GV-NVR, this fanless mobile NVR system supports up to 24 channels of GV-IP megapixel cameras, offering an all-in-one solution (Live View, Playback, Recording, Backup, CMS) for demanding conditions.
- ▣GV-MNVR1000 System
- ▣3-pin Terminal Block (for ACC Connection and DC In)
- ▣HDD screw x 4
- ▣GPS Antenna
- ▣GV-NVR Dongle for third-party IP Camera Connection (Optional)
- ▣DVD (User’s Manual and Quick Start Guide included)
| Hardware | |
|---|---|
| System | |
| CPU | Intel Atom Processor |
| RAM | 4 GB |
| OS | 64-bit Windows Embedded Standard 7 SP1 |
| No. of Drive Bay | 1 (2.5" HDD / SSD) |
| Internal Storage | 32 GB (CFast) |
| HDD Storage | Up to 2 TB |
| Ethernet | RJ-45, 10 / 100 / 1000 Mbps x 2 |
| Video Output | VGA and DisplayPort |
| USB 2.0 | Rear: 2 ports |
| Connector USB 3.0 | Front: 1 port |
| Power | DC 10 ~ 35V (ACC, Vehicle Ignition) |
| GPS | Rear: 1 port Input: AC 100 ~ 240V, 50 - 60 Hz |
| Power Adapter (Optional) | |
| Fan | N/A |
| Environment | |
| Operating HDD | 0°C ~ 60°C (32°F ~ 140°F) |
| Temp. | SSD -30°C ~ 70°C (-22°F ~ 158°F) |
| Humidity | 10 ~ 90% RH (non-condensing) |
| Physical | |
| Color | Silver |
| LED Indicator | 4 (HDD, WWAN, Power and WLAN) |
| Dimensions (W x H x D) | 260 x 50 x 176 mm (10.24 x 1.97 x 6.93”) |
| Net Weight | 2.1 kg / 4.63 lb (± 1 kg / 2.2 lb) |
| Operating Shock | 20 G 1.5 G @ 5 ~ 500 Hz (HDD) |
| Operating Vibration | |
| GV-MNVR1000 System | September 8, 2026 |
| Sensor and Alarm | |
| Inputs | 4 / 8 / 16 ports (optional GV-I/O Box required) |
| Outputs | 4 / 8 / 16 ports (optional GV-I/O Box required) |
| Software | |
| Video and Audio | |
| Video Standard | NTSC, PAL |
| Video Codec | MJPEG / MPEG4 / H.264 |
| Audio Codec | 32 kHz / 16 bit |
| Video Stream | Dual Streams from GeoVision IP Cameras Dual Streams from 3rd-party IP Cameras |
| 1 MP | 20 channels 20 channels |
| 2 MP | 17 channels 17 channels |
| Video Input | |
| 3 MP | 24 channels 24 channels |
| 5 MP | 16 channels 16 channels |
| Audio Input | Up to 24 channels Up to 24 channels |
